Sliding shutters
USING
Sliding shutters are used to close and open the bin outlet or partially block the outlet section, as well as to be installed on transport and technological equipment. Sliding shutters are produced with manual control or from an automatic control system, a doser control module. The working conditions are at a temperature of 5° to 40°, relative humidity of 90%, and atmospheric pressure of 84-106,7 kPa.
technical specifications

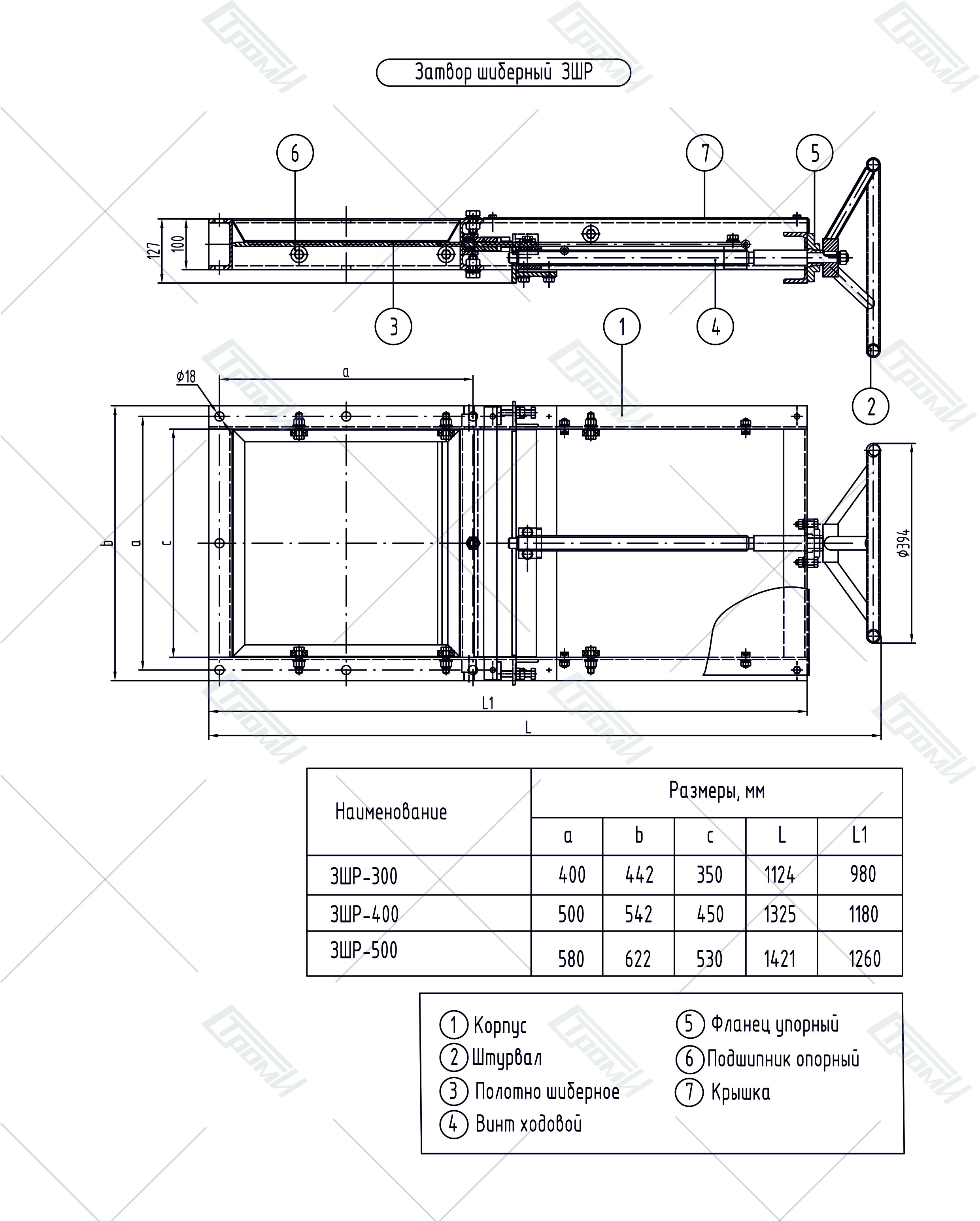

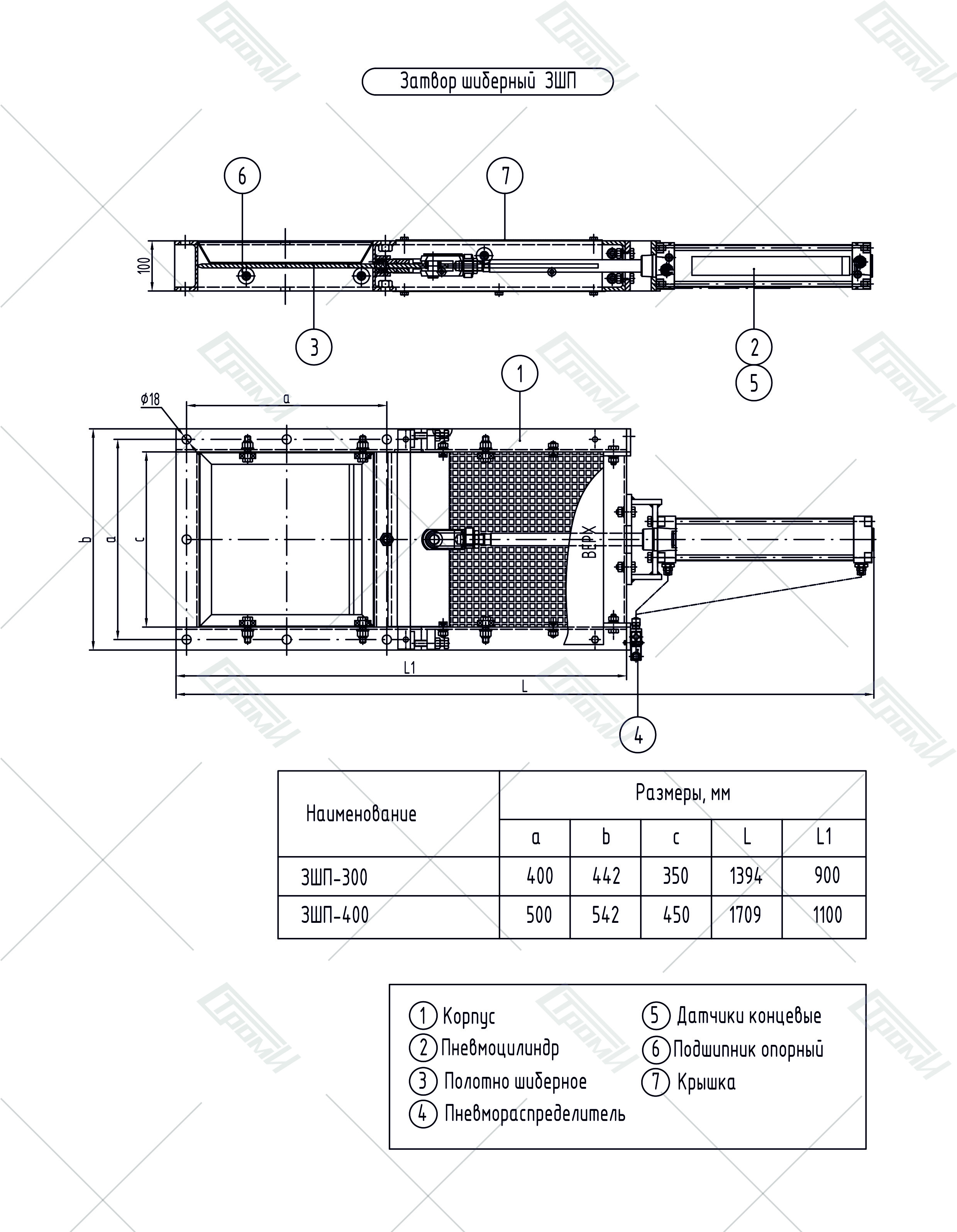

| Parameters | Manual sliding shutter | Sliding shutter with pneumatic drive |
|---|---|---|
| Nominal bore, mm | 300х300 / 400х400 / 500х500 / 600х600 / 700х700 | 400х400 / 300х300 |
| Control | manual | manual pneumatic / automatic electro pneumatic |
| Position control of sliding part | visual | «closed» / «closed – open» |
| Weight, kg, max | 68 / 87 / 100 / 125 / 159 | 70 / 55 |
| Pneumatic feeding from power network with pressure, MPa | 0,5 ± 0,1 | |
| Air consumption, normalized to normal pressure, taking into account the coefficient of heat loss of 1,4, m3/min | 1,050 / 0,898 | |
| Volume of air consumed per cylinder operation cycle, m3 | 0,0665 / 0,0214 | |
| Requirements for cleaning and drying compressed air according to GOST 17433-80, class | 7 | |
| Pneumatic cylinder diameter, mm | 125 / 80 | |
| Stroke of pneumatic cylinder rods, mm | 400 / 320 | |
| Electric feeding from AC network with voltage, V | 220 ± 22 | |
| Protection degree of electrical equipment | IP54 | |
| Consumed power, W | 7,5 |
