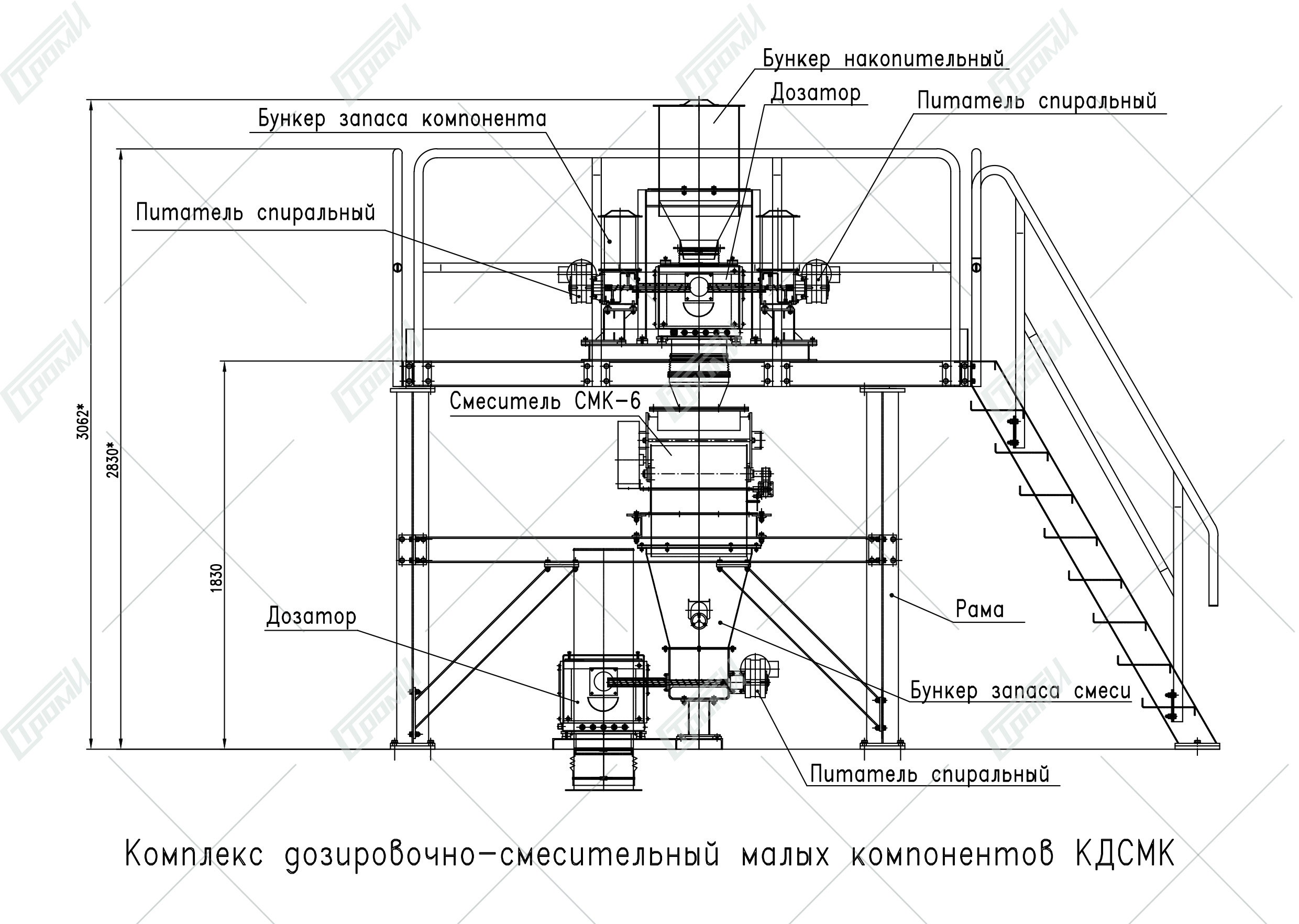

Dosing-mixing complexes of small components
USING
The complex is used for preparation and proportioning of free-pouring material mixtures and can be used in different branches of industry. This complex is often used for preparation of premixes – mixture of small additives and small quantity of main raw material. Proportioned materials are free-running components with a natural angle of slope of max 60°, with humidity of max 1% and grain size of max 3 mm.
technical specifications
| Parameters | Values |
|---|---|
| The lowest limit of dosing, kg | 0,05 |
| The biggest limit of dosing, kg | 1 |
| Proportioning cycle time, sec, max | 90 |
| Average dosing error, % | ± 0,1 |
| Volume of the weighing tanks, liters | 0,7 |
| Type of the feeders | spiral / vibrating |
| Number of the feeders | 1…4 / 1 |
| Complex weight, kg, max (without metal structures) | 245 |
| Complex control | electro-pneumatic |
| Air supply shall be from air mains with the following pressure, MPa | 0,5 ± 0,1 |
| Compressed air consumption, normalized to standard conditions (temperature 20° and pressure 0,1 MPa), m3/min, max | 0,2 |
| Electric power supply for spiral feeders from AC network with the following voltage, V | 380 ± 38 |
| Electric power supply for pneumatic valves for gate control from AC network with voltage, V | 220 ± 22 |
| Network frequency, Hz | 50 ± 1 |
| Electric power supply for weighers from DC network with voltage, V | 12 |
| Consumed power, kW (with one feeder) | 0,55 |
| IP code of the electrical equipment housing | IР54 |
| Type of the force-measuring sensors | Strain gauge R = 6 kg |
