Distributor conveyor KRP-800
USING
The distributing conveyor is designed for transportation of noncaking and nonsticking granular materials with humidity of not more than 3 % in a horizontal or inclined direction of up to 15° in industrial premises at an ambient temperature of -30° to 50°. Productivity of an elevator should be specified before an order and it depends on conditions of work, characteristics of cargo and other factors. Productivity listed in the table for material with density 1,75 g/cm3.
technical specifications
| Parameters | Values |
|---|---|
| Belt width, mm | 800 |

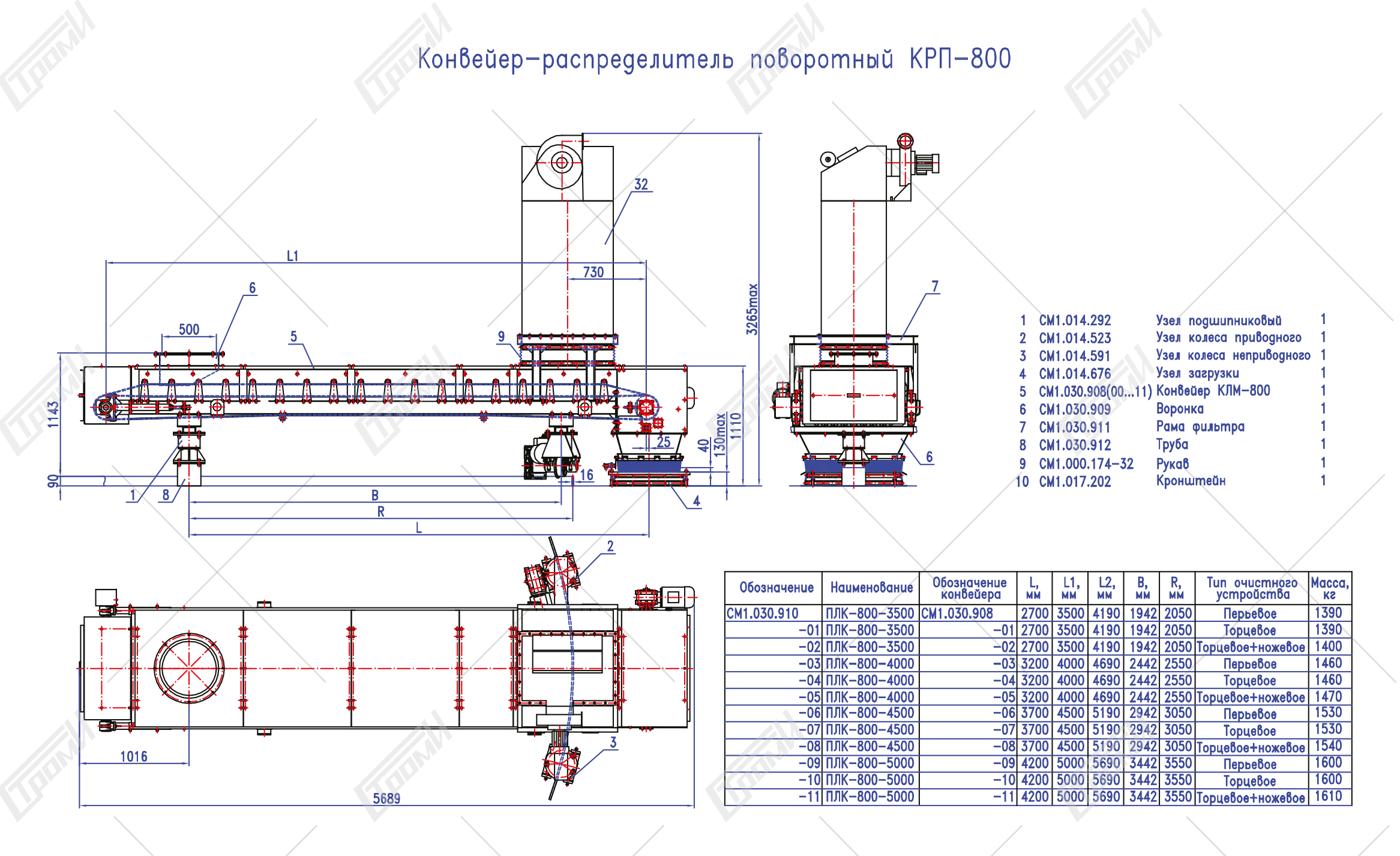

| Length between drum axes of a power-drive station and tension station, mm | ref. mounting drawing |
| Rated output, m3/hour | 25 (14)* |
| Belt speed, m/s | 0,8 |
| Rotation frequency of droving drum, rpm | 71 |
| Driving drum diameter, mm | 215 |
| Tension drum diameter, mm | 215 |
| Charging cones quantity | 1 |
| Tensioning device type / tension length, mm | screw / 150 |
| Electric power supply voltage, V | 380 |
| Electric energy input, kW | 3,0 |
| Conveyor mass, kg | ref. mounting drawing |
