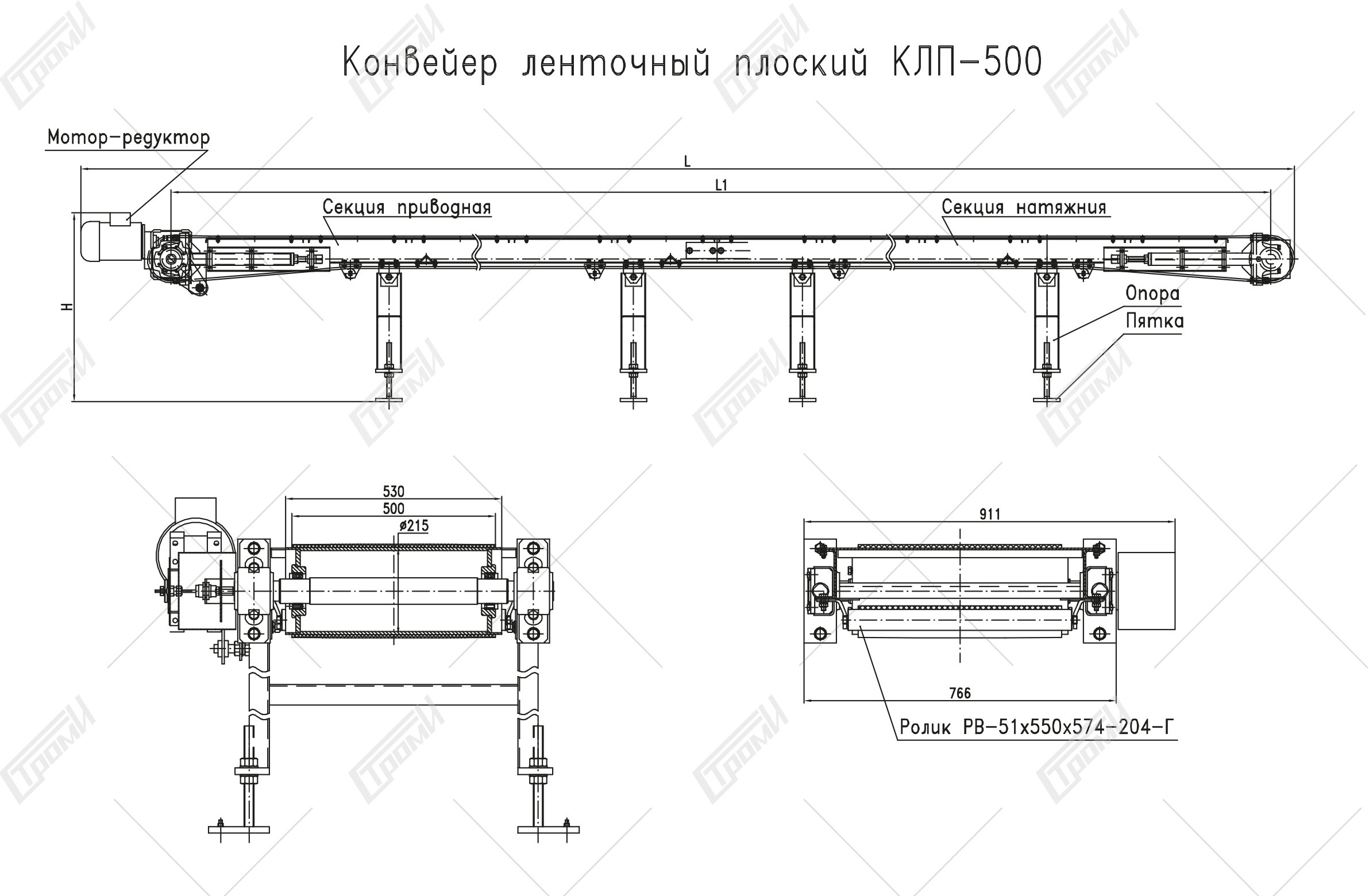

Flat belt conveyor KLP
USING
The flat-belt conveyor is designed for transportation of noncaking and nonsticking granular materials with humidity of not more than 3% in a horizontal or inclined direction of up to 15° in industrial premises at an ambient temperature of -30° to 50°.
technical specifications
| Parameters | Values |
|---|---|
| Belt width, mm | 500 |
| Length between drum axes of a power-drive station and tension station, mm | 2000...14000 |
| Rated output, m3/hour | 25 (14)* |
| Maximum belt speed, m/s | 0,8 |
| Driving drum diameter, mm | 215 |
| Tension drum diameter, mm | 215 |
| Maximum driving drum rotational frequency, rpm | 71 |
| Type of tensioning device / tension length, mm | screw / 150 |
| Electric power supply voltage, V | 380 |
| Electric energy input, kW | 0,75...7,5 |
