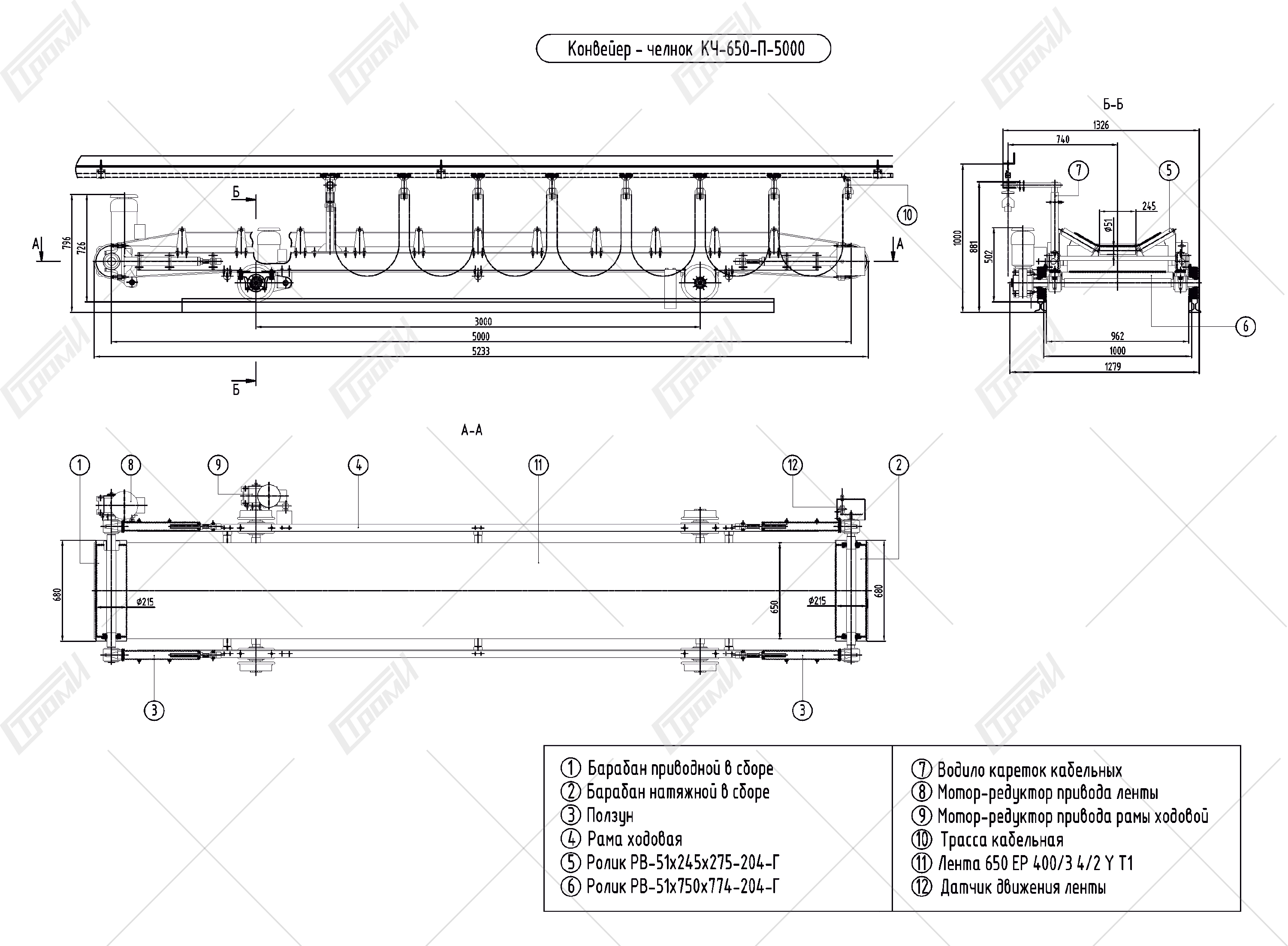

Shuttle conveyor KCH-650-5000
USING
Shuttle conveyor KCH-650-5000 is used for transportation of various free-flowing finegrained and lump noncaking and nonsticking materials with mesh size up to 30 mm and with bulk density up to 2 g/cm3 and with an angle of natural slope of not more than 60° and humidity of not more than 3 % in a horizontal direction in industrial premises at an ambient temperature of -20° to 60°.
technical specifications
| Parameters | Values |
|---|---|
| Belt width, mm | 650 |
| Length between drum axes of a power-drive station and tension station, mm | 5000 |
| Rated capacity, t/hour (m3/hour) | 63 (36) |
| Belt speed, m/s | 0,53 |
| Railroad rail type GOST 6368-82 | R 18 |
| Wheel gauge, mm | 1000 |
| Conveyor running speed, m/s | 0,13 |
| Rotation frequency of droving drum, rpm | 47 |
| Rotation frequency of axle drive shaft, rpm | 11,5 |
| Tensioning device type / tension length, mm | screw / 150 |
| Electric energy input of driving drum, kW | 2,2 |
| Gear motor electric energy input of axle drive shaft, kW | 0,55 |
| Electric power supply voltage, V | 380 ± 38 |
| Electrical frequency, Hz | 50 ± 1 |
| Conveyor mass, kg | 670 |
