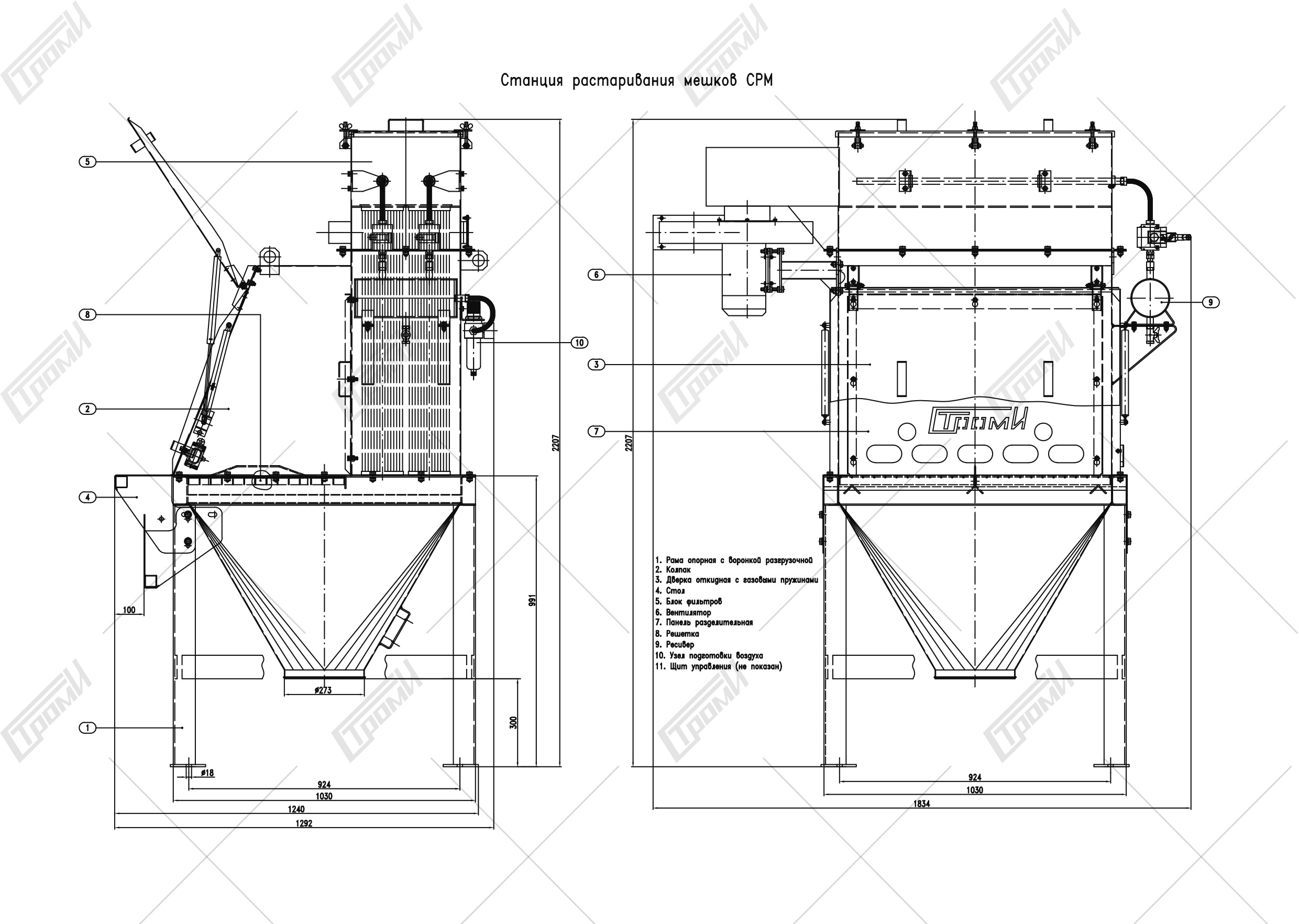

Bags unloading stations SRM
USING
Bags unloading station SRM is used for agitating and uniform emptying flowing and small lumps materials (up to 6 mm) in different industries. Set of the equipment is not used in explosion-hazardous premises, with harmful and toxic substances in contact and inspiration. Conditions of the big bag unloading station SRM operation: ambient temperature 5-50°, relative air humidity 90%, atmosphere pressure 84-106,7 kPa.
technical specifications
| Parameters | Values |
|---|---|
| Maximum bag length, mm | 800 |
| Mesh size of bag emptying surface, mm | 33х30 |
| Humidity of the unloaded material, %, max | 2,0 |
| Control | Manual, electro pneumatic |
| Сontrol network voltage, V | 220 ± 22 |
| Power equipment network voltage, V | 380 ± 38 |
| Frequency, Hz | 50 ± 1 |
| Pressure of pneumatic network supply, MPa | 0,5 ± 0,1 |
| Compressed air consumption (under normal conditions), m3/min | 7,56 |
| Volume of compressed air (under normal conditions) is consumed in one filter airwashing cycle (02 s) | 0,18 |
| Additional volume of compressed air (under normal conditions) is consumed with work of a pneumatic vibrator of 16 m3/min | 0,285 |
| Consumed power of the fan FUK–2100/SP, kW | 0,75 |
| Consumed power of pneumatic distributors EVG342-4D-04FA-Q, VA, kW | 2х12,7 |
| Dimensions (L x W x H), mm | 1834х1292х2207 |
| Weight, kg, max | 375 |
