Vibrating piped feeders
USING
Vibratory feeders of the PV-0,21, PV-0,335 series are designed for supply of free-flowing fine-grained and lump non-caking and non-sticking materials with mesh size up to 20 mm with bulk density up to 2 g/sm3 in workshops at environmental air temperature of -30° to 50°.
technical specifications

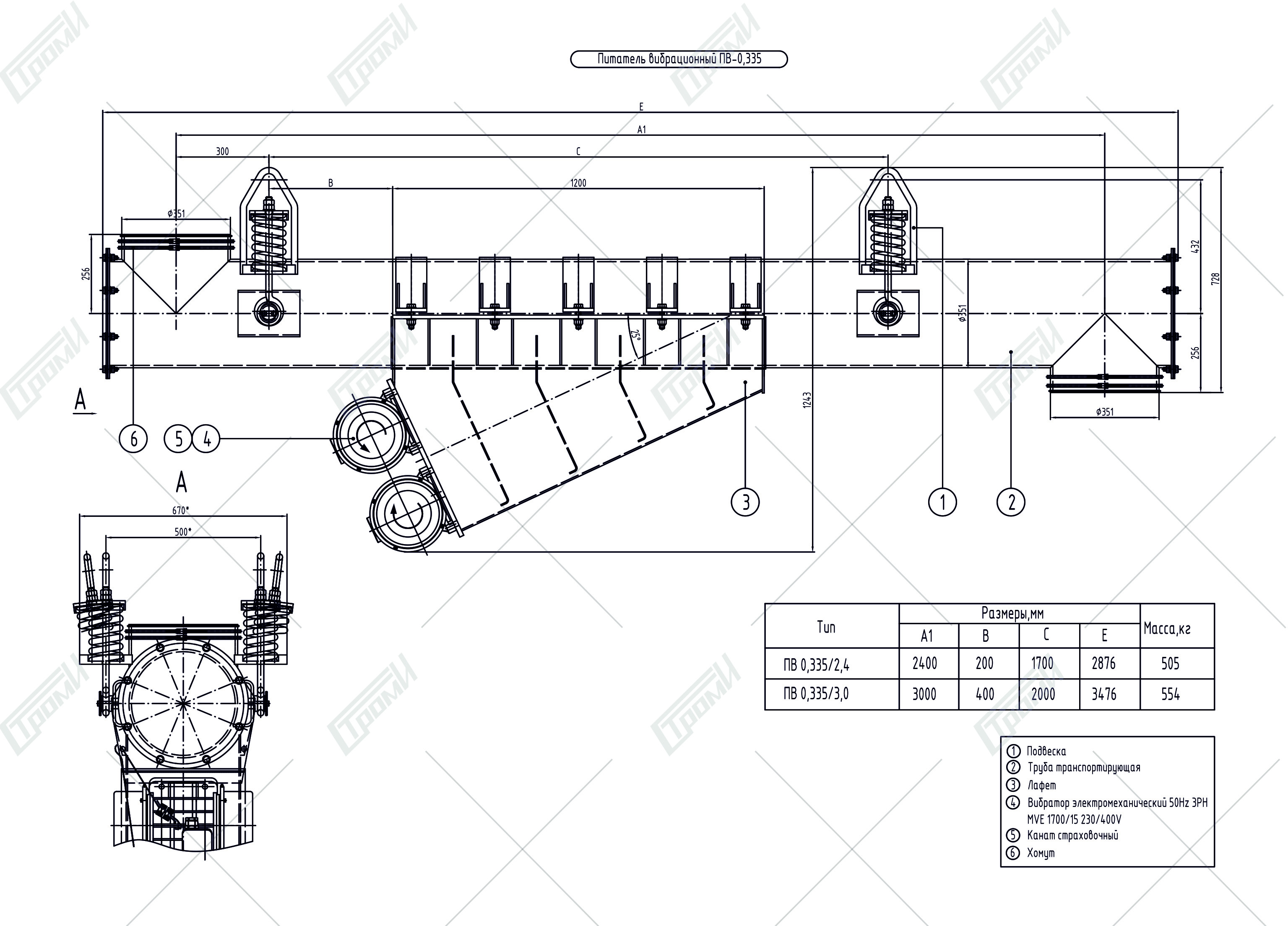

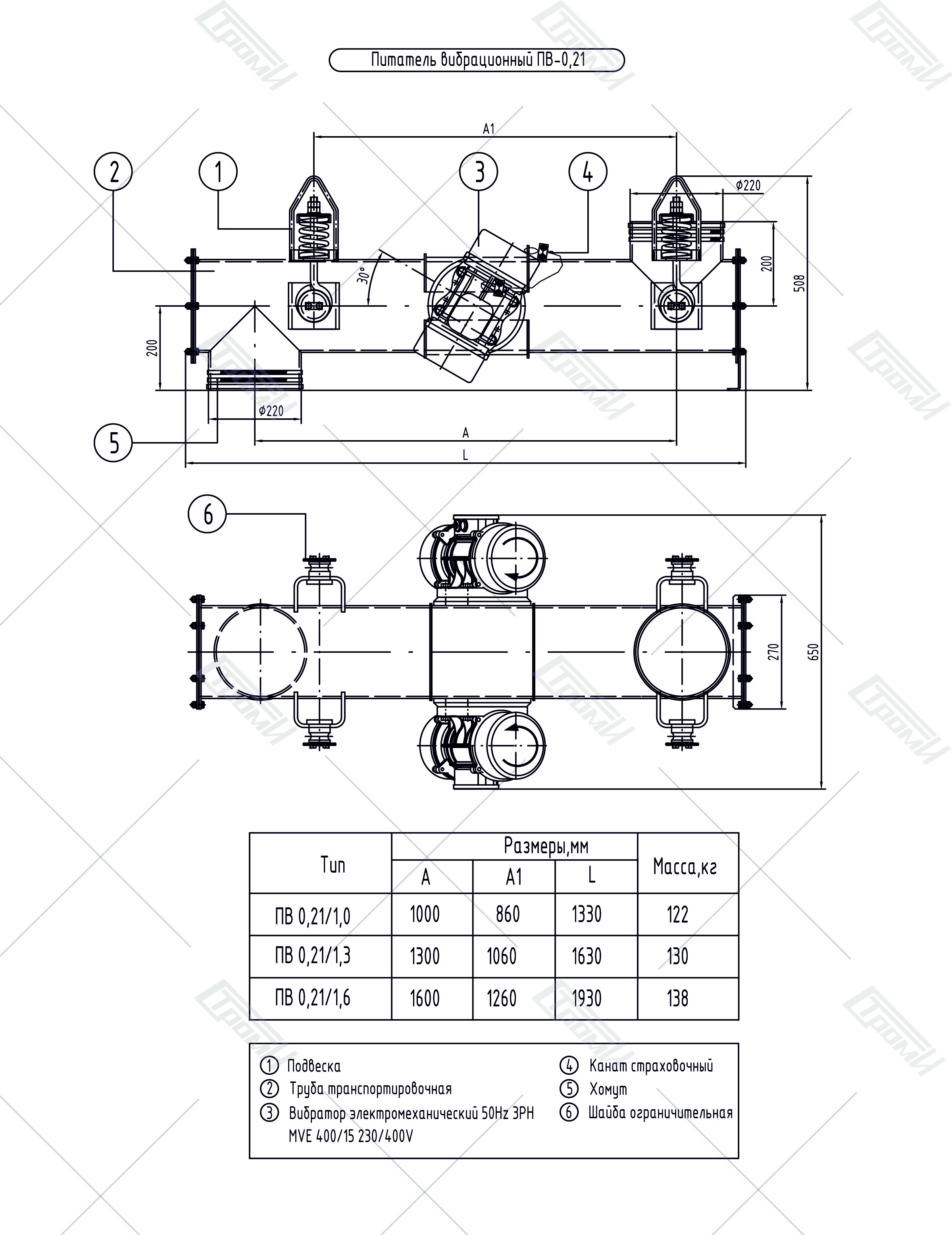

| Parameters | PV – 0,21 / 1,0 | PV – 0,21 / 1,3 | PV – 0,21 / 1,6 | PV – 0,335 / 2,4 | PV – 0,335 / 3,0 |
|---|---|---|---|---|---|
| Conveying pipe inner diameter, mm | 210 | 210 | 210 | 210 | 210 |
| Spacing between centers of loading and unloading part, mm | 1000 | 1300 | 1600 | 2400 | 3000 |
| Output for sand with density of 1,5 t/m3 with installation of balance weight on 80% | 20 | 20 | 20 | 20 | 20 |
| Electromechanical vibrator type, V | MVE 400/15 | MVE 400/15 | MVE 400/15 | MVE 2300/3 | MVE 2300/3 |
| Power supply voltage, V | 380 ± 38 | 380 ± 38 | 380 ± 38 | 380 ± 38 | 380 ± 38 |
| Number of vibrators | 2 | 2 | 2 | 2 | 2 |
| Rated input, kW | 2 х 0,3 | 2 х 0,3 | 2 х 0,3 | 2 х 0,3 | 2 х 0,3 |
| Dimensions (L x W x H), mm | 1330*650*508 | 1630*650*508 | 1930*650*508 | 2875*670*1243 | 3475*670*1243 |
| Weight, kg, max | 122 | 130 | 138 | 505 | 554 |
